4-in-1 Smart Android Diode Matrix

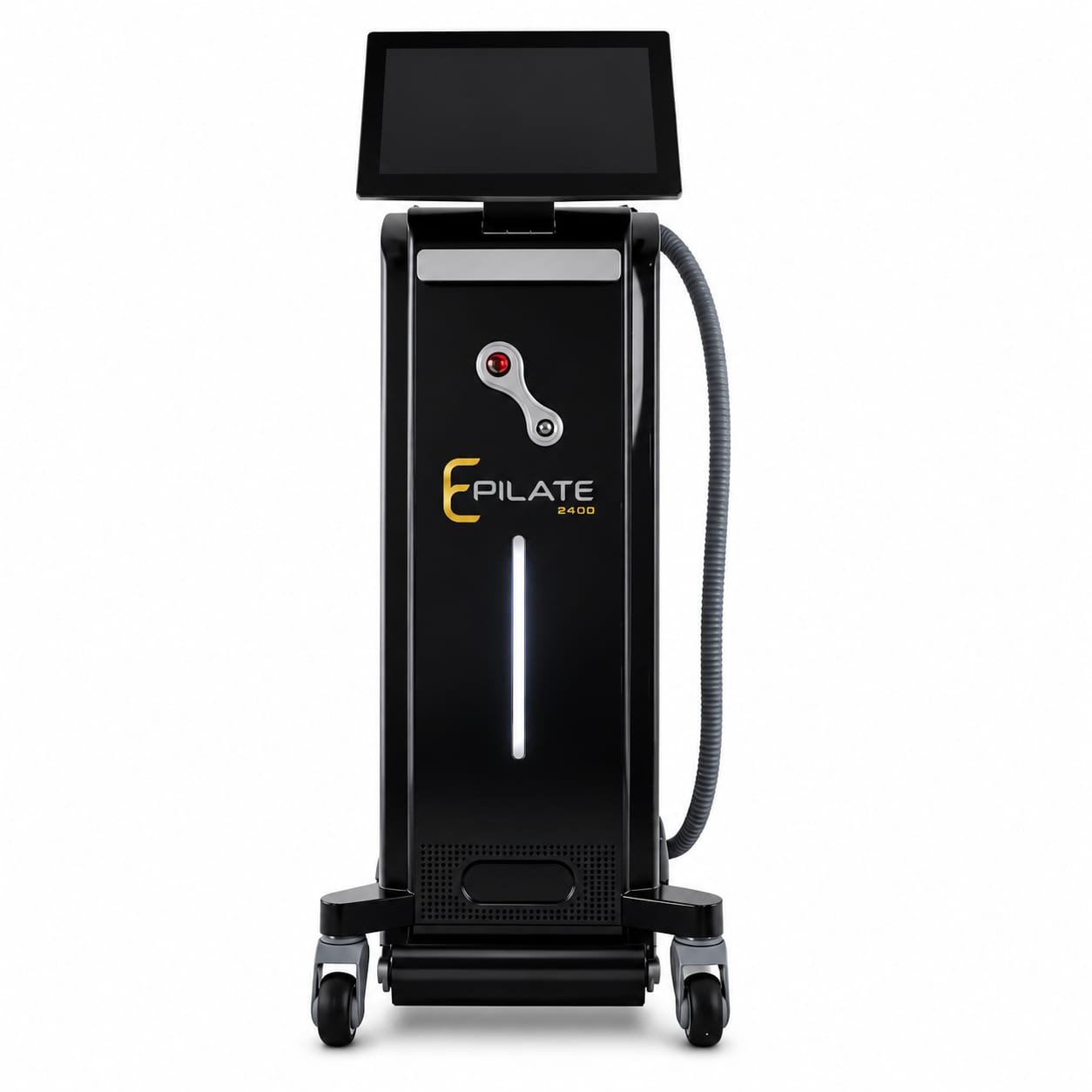

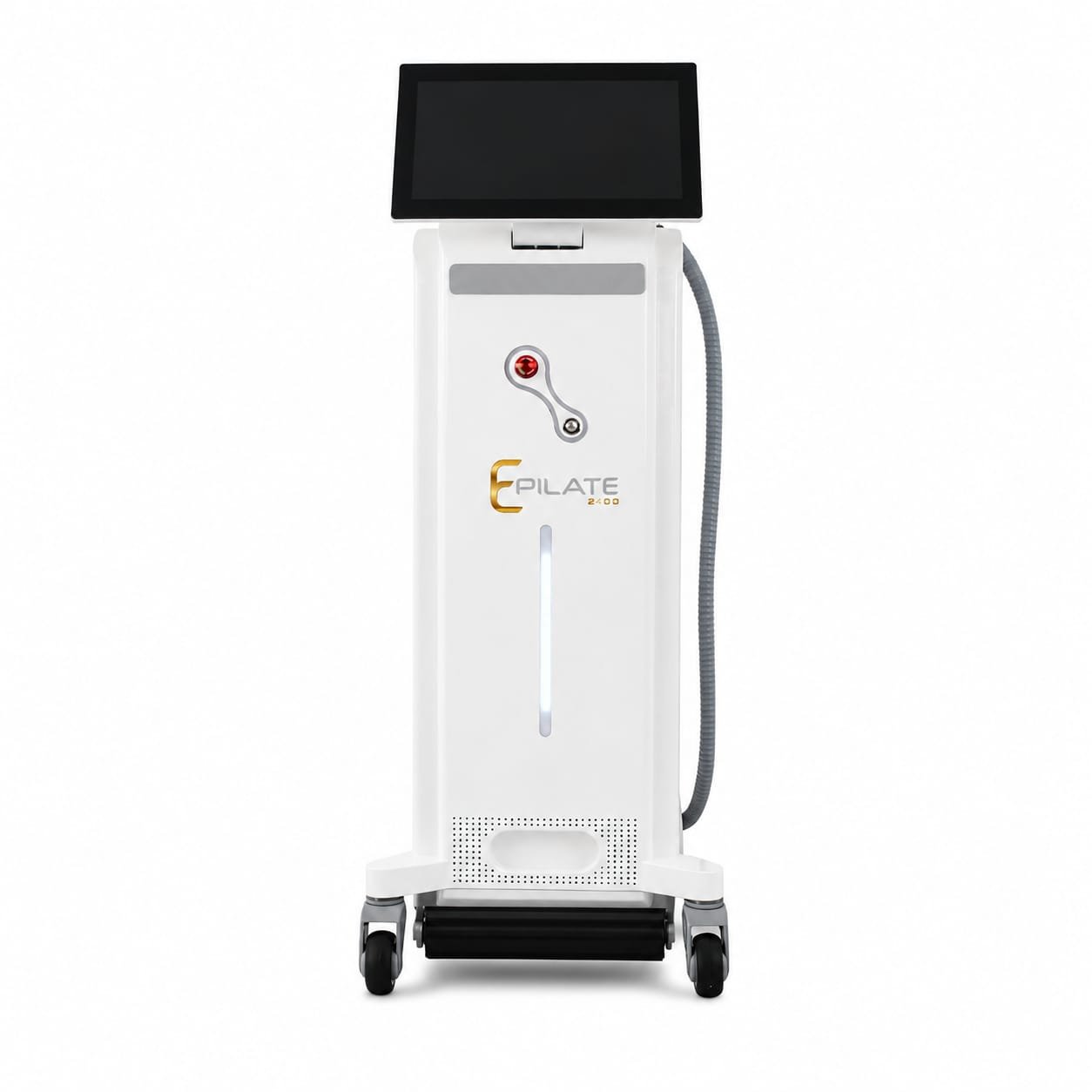

EPILATE™ 2400W DIODE LHR

2400W Laser Output 15.6" Android Touch Screen 50,000,000 Shots

The EPILATE™ 2400W diode laser platform transfers high-grade optical energy directly into hair follicles where melanin converts it to heat, permanently inhibiting hair regrowth without tissue damage. Powered by USA Coherent laser bars, a 15.6-inch Android LCD color screen, and 50 million shot sapphire lens handpieces, it offers unparalleled clinical efficiency and speed.

Laser Output Power 2400W Emitter

Handpiece Lifespan 50 Million Shots

Request Wholesale Pricing View Full Specifications

Technical Specifications

Light Source	Diode Laser Emitter
Laser Emitter Power	2400W
Laser Bar Source	USA Coherent Laser Bars
Wavelengths	4-in-1 System (808nm + 755nm + 1064nm + 940nm)
Operation Interface	15.6 Inch Android LCD Color Touch Screen
Spot Sizes	13×20mm, 13×12mm, Facial Nose Tip (Optional)
Output Energy	1 – 120J / 1 – 200J Strong Energy Output
Repetition Rate	Up to 10Hz
Cooling Architecture	TEC Air Conditioning + Sapphire Crystal + Japanese Cooling Element + Germany Pump
Water Tank Capacity	5L Large Capacity Acrylic Water Tank
Voltage	110V / 220V

Hardware & Performance Advantages

USA Coherent Diode Bars: World-class imported laser bars delivering consistent 2400W optical emission.
15.6" Android Touch Screen: Smart graphical interface for fast parameter configuration and intuitive navigation.

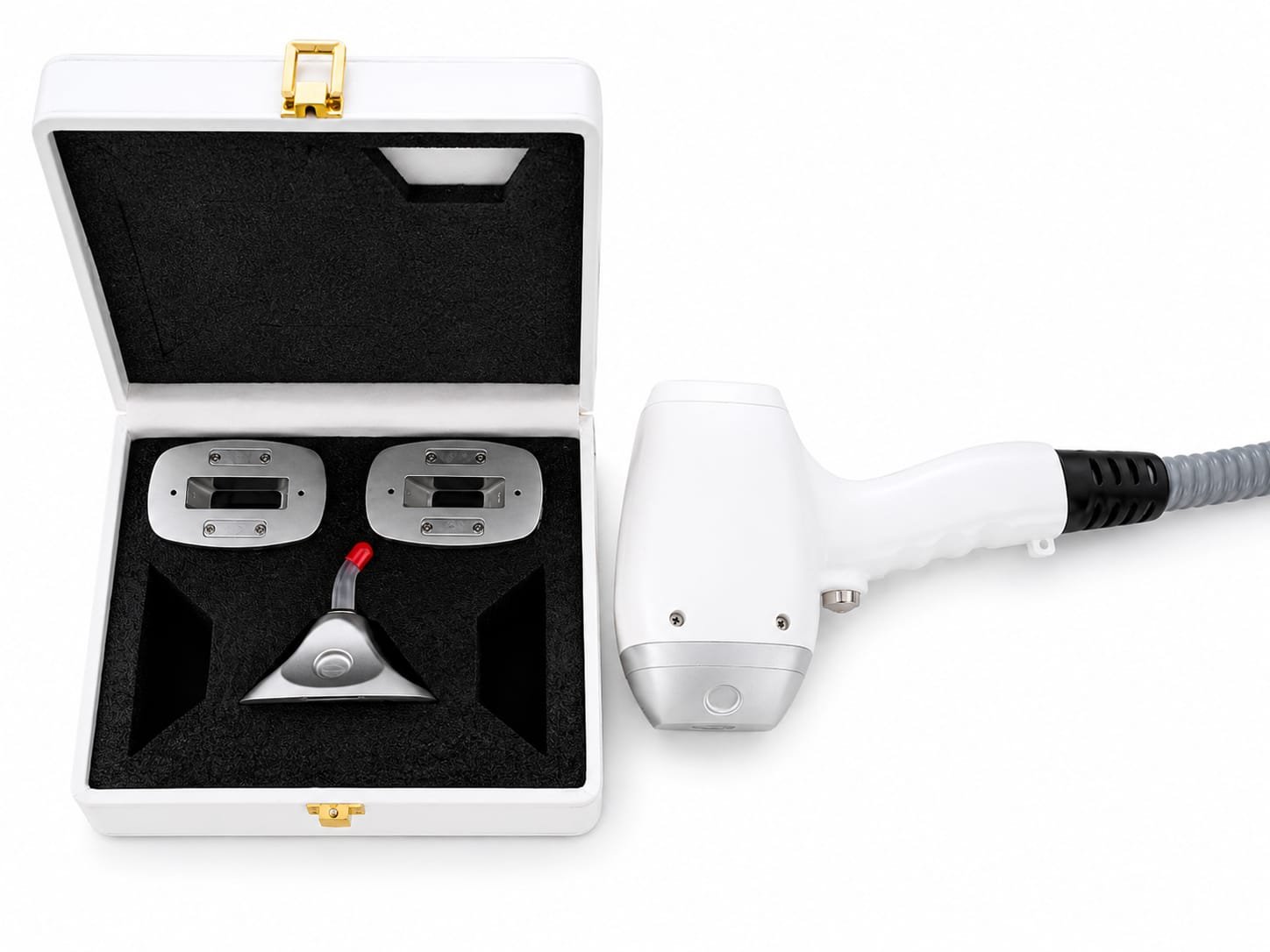

Smart Screen Handpiece: Real-time display of energy values and applicator temperature directly on the handle screen.
50,000,000 Shot Lifespan: High-grade sapphire lens system minimizing optical loss for maximum durability.

Germany Imported Water Pump: Silent operation with sustained high-pressure water circulation for heavy clinical workloads.
Japanese Cooling Element: Long-life semiconductor elements engineered for 5–6 years of reliable service.
TEC Air Conditioning System: Active cooling keeps the water tank at a stable 26°C, enabling up to 36 hours of continuous operation.
5L Acrylic Water Tank: Large capacity reservoir ensuring rapid fluid flow rates.

4-in-1 Multi-Wavelength Matrix

755nm

Alexandrite

High melanin absorption ideal for fine, light-colored hair and thin superficial follicles.

808nm

Classic Diode

The clinical gold standard for deep follicular penetration and fast body hair treatment.

940nm

Thermal Target

Provides micro-vascular coagulation around hair roots for enhanced reduction efficiency.

1064nm

YAG Wave

Lower melanin absorption ensures maximum safety when treating dark Fitzpatrick skin tones.

Real-Time Safety & Monitoring System

Water Tank Level & Flow Detection Continuous sensors monitor liquid levels and fluid flow rates to prevent overheating.

Handle Connection & Cooling Status Automated detection checks applicator connection integrity and active cooling state.

36V Power Off & Interlock Security Instantaneous high-voltage protection and door interlock monitoring for clinical safe use.

Germany Pump Detection Self-diagnostic checks preserve hydraulic pump life and maintain stable circulation.
